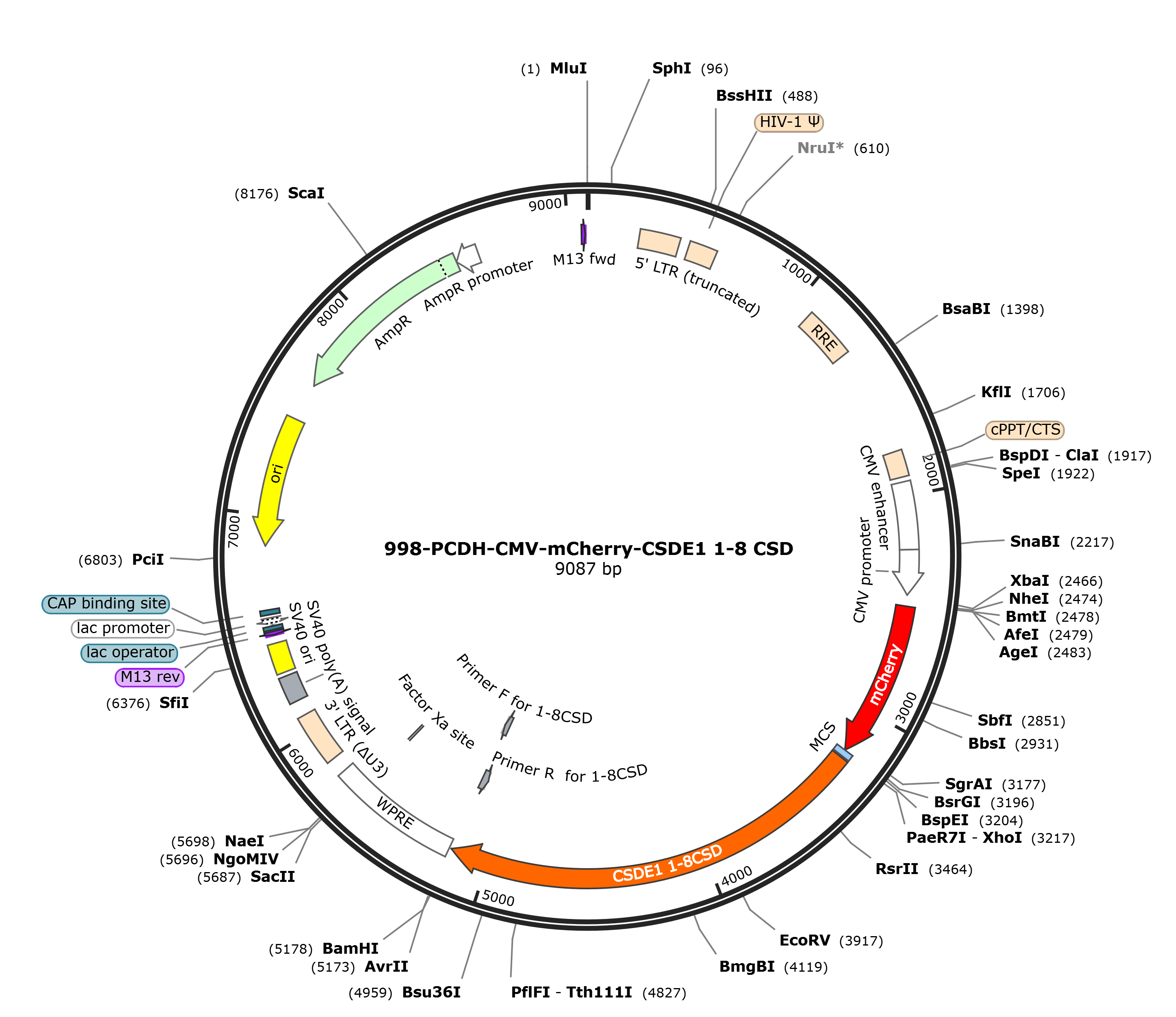

pCDH-CMV-mCherry-CSDE1 1-8CSD

LOCUS       pCDH-CMV-mCherry-CSDE1 1-8CSD               9087 bp DNA     circular SYN 07-MAY-2023
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    .
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 9087)
  AUTHORS   15129015045
  TITLE     Direct Submission
  JOURNAL   Exported Aug 2, 2026 from SnapGene 6.0.2
            https://www.biofeng.com
FEATURES             Location/Qualifiers
     source          1..9087
                     /mol_type="other DNA"
                     /organism="synthetic DNA construct"
     LTR             234..414
                     /label=5' LTR (truncated)
                     /note="truncated 5' long terminal repeat (LTR) from HIV-1"
     misc_feature    458..583
                     /label=HIV-1 Psi
                     /note="packaging signal of human immunodeficiency virus
                     type 1"
     misc_feature    1076..1309
                     /label=RRE
                     /note="The Rev response element (RRE) of HIV-1 allows for
                     Rev-dependent mRNA export from the nucleus to the
                     cytoplasm."
     misc_feature    1798..1915
                     /label=cPPT/CTS
                     /note="central polypurine tract and central termination
                     sequence of HIV-1"
     primer_bind     1904..1953
                     /label=Primer 4
     enhancer        1938..2241
                     /label=CMV enhancer
                     /note="human cytomegalovirus immediate early enhancer"
     promoter        2242..2445
                     /label=CMV promoter
                     /note="human cytomegalovirus (CMV) immediate early
                     promoter"
     CDS             2496..3203
                     /codon_start=1
                     /product="monomeric derivative of DsRed fluorescent protein
                     (Shaner et al., 2004)"
                     /label=mCherry
                     /note="mammalian codon-optimized"
                     /translation="MVSKGEEDNMAIIKEFMRFKVHMEGSVNGHEFEIEGEGEGRPYEG
                     TQTAKLKVTKGGPLPFAWDILSPQFMYGSKAYVKHPADIPDYLKLSFPEGFKWERVMNF
                     EDGGVVTVTQDSSLQDGEFIYKVKLRGTNFPSDGPVMQKKTMGWEASSERMYPEDGALK
                     GEIKQRLKLKDGGHYDAEVKTTYKAKKPVQLPGAYNVNIKLDITSHNEDYTIVEQYERA
                     EGRHSTGGMDELYK"
     primer_bind     2909..2928
                     /label=mCherry-F
     misc_feature    3204..3232
                     /label=MCS
                     /note="multiple cloning site"
     CDS             3240..5174
                     /codon_start=1
                     /label=CSDE1 1-8CSD
                     /translation="MSFDPNLLHNNGHNGYPNGTSAALRETGVIEKLLTSYGFIQCSER
                     QARLFFHCSQYNGNLQDLKVGDDVEFEVSSDRRTGKPIAVKLVKIKQEILPEERMNGQE
                     VFYLTYTPEDVEGNVQLETGDKINFVIDNNKHTGAVSARNIMLLKKKQARCQGVVCAMK
                     EAFGFIERGDVVKEIFFHYSEFKGDLETLQPGDDVEFTIKDRNGKEVATDVRLLPQGTV
                     IFEDISIEHFEGTVTKVIPKVPSKNQNDPLPGRIKVDFVIPKELPFGDKDTKSKVTLLE
                     GDHVRFNISTDRRDKLERATNIEVLSNTFQFTNEAREMGVIAAMRDGFGFIKCVDRDVR
                     MFFHFSEILDGNQLHIADEVEFTVVPDMLSAQRNHAIRIKKLPKGTVSFHSHSDHRFLG
                     TVEKEATFSNPKTTSPNKGKEKEAEDGIIAYDDCGVKLTIAFQAKDVEGSTSPQIGDKV
                     EFSISDKQRPGQQVATCVRLLGRNSNSKRLLGYVATLKDNFGFIETANHDKEIFFHYSE
                     FSGDVDSLELGDMVEYSLSKGKGNKVSAEKVNKTHSVNGITEEADPTIYSGKVIRPLRS
                     VDPTQTEYQGMIEIVEEGDMKGEVYPFGIVGMANKGDCLQKGESVKFQLCVLGQNAQTM
                     AYNITPLRRA"
     primer_bind     complement(4889..4906)
                     /label=yzy-P765
     misc_feature    complement(5144..5182)
                     /label=Primer R  for 1-8CSD
     misc_feature    5162..5200
                     /label=Primer F for 1-8CSD
     misc_feature    5184..5771
                     /label=WPRE
                     /note="woodchuck hepatitis virus posttranscriptional
                     regulatory element"
     CDS             complement(5655..5666)
                     /codon_start=1
                     /product="Factor Xa recognition and cleavage site"
                     /label=Factor Xa site
                     /translation="IEGR"
     LTR             5844..6077
                     /label=3' LTR (Delta-U3)
                     /note="self-inactivating 3' long terminal repeat (LTR) from
                     HIV-1"
     polyA_signal    6149..6270
                     /label=SV40 poly(A) signal
                     /note="SV40 polyadenylation signal"
     rep_origin      6289..6424
                     /label=SV40 ori
                     /note="SV40 origin of replication"
     primer_bind     complement(6462..6478)
                     /label=M13 rev
                     /note="common sequencing primer, one of multiple similar
                     variants"
     protein_bind    6486..6502
                     /label=lac operator
                     /bound_moiety="lac repressor encoded by lacI"
                     /note="The lac repressor binds to the lac operator to
                     inhibit transcription in E. coli. This inhibition can be
                     relieved by adding lactose or
                     isopropyl-beta-D-thiogalactopyranoside (IPTG)."
     promoter        complement(6510..6540)
                     /label=lac promoter
                     /note="promoter for the E. coli lac operon"
     protein_bind    6555..6576
                     /label=CAP binding site
                     /bound_moiety="E. coli catabolite activator protein"
                     /note="CAP binding activates transcription in the presence
                     of cAMP."
     rep_origin      complement(6864..7452)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     CDS             complement(7623..8483)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     promoter        complement(8484..8588)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     9062..9078
                     /label=M13 fwd
                     /note="common sequencing primer, one of multiple similar
                     variants"
ORIGIN
        1 acgcgtgtag tcttatgcaa tactcttgta gtcttgcaac atggtaacga tgagttagca
       61 acatgcctta caaggagaga aaaagcaccg tgcatgccga ttggtggaag taaggtggta
      121 cgatcgtgcc ttattaggaa ggcaacagac gggtctgaca tggattggac gaaccactga
      181 attgccgcat tgcagagata ttgtatttaa gtgcctagct cgatacaata aacgggtctc
      241 tctggttaga ccagatctga gcctgggagc tctctggcta actagggaac ccactgctta
      301 agcctcaata aagcttgcct tgagtgcttc aagtagtgtg tgcccgtctg ttgtgtgact
      361 ctggtaacta gagatccctc agaccctttt agtcagtgtg gaaaatctct agcagtggcg
      421 cccgaacagg gacctgaaag cgaaagggaa accagagctc tctcgacgca ggactcggct
      481 tgctgaagcg cgcacggcaa gaggcgaggg gcggcgactg gtgagtacgc caaaaatttt
      541 gactagcgga ggctagaagg agagagatgg gtgcgagagc gtcagtatta agcgggggag
      601 aattagatcg cgatgggaaa aaattcggtt aaggccaggg ggaaagaaaa aatataaatt
      661 aaaacatata gtatgggcaa gcagggagct agaacgattc gcagttaatc ctggcctgtt
      721 agaaacatca gaaggctgta gacaaatact gggacagcta caaccatccc ttcagacagg
      781 atcagaagaa cttagatcat tatataatac agtagcaacc ctctattgtg tgcatcaaag
      841 gatagagata aaagacacca aggaagcttt agacaagata gaggaagagc aaaacaaaag
      901 taagaccacc gcacagcaag cggccactga tcttcagacc tggaggagga gatatgaggg
      961 acaattggag aagtgaatta tataaatata aagtagtaaa aattgaacca ttaggagtag
     1021 cacccaccaa ggcaaagaga agagtggtgc agagagaaaa aagagcagtg ggaataggag
     1081 ctttgttcct tgggttcttg ggagcagcag gaagcactat gggcgcagcc tcaatgacgc
     1141 tgacggtaca ggccagacaa ttattgtctg gtatagtgca gcagcagaac aatttgctga
     1201 gggctattga ggcgcaacag catctgttgc aactcacagt ctggggcatc aagcagctcc
     1261 aggcaagaat cctggctgtg gaaagatacc taaaggatca acagctcctg gggatttggg
     1321 gttgctctgg aaaactcatt tgcaccactg ctgtgccttg gaatgctagt tggagtaata
     1381 aatctctgga acagattgga atcacacgac ctggatggag tgggacagag aaattaacaa
     1441 ttacacaagc ttaatacact ccttaattga agaatcgcaa aaccagcaag aaaagaatga
     1501 acaagaatta ttggaattag ataaatgggc aagtttgtgg aattggttta acataacaaa
     1561 ttggctgtgg tatataaaat tattcataat gatagtagga ggcttggtag gtttaagaat
     1621 agtttttgct gtactttcta tagtgaatag agttaggcag ggatattcac cattatcgtt
     1681 tcagacccac ctcccaaccc cgaggggacc cgacaggccc gaaggaatag aagaagaagg
     1741 tggagagaga gacagagaca gatccattcg attagtgaac ggatctcgac ggttaacttt
     1801 taaaagaaaa ggggggattg gggggtacag tgcaggggaa agaatagtag acataatagc
     1861 aacagacata caaactaaag aattacaaaa acaaattaca aaaattcaaa attttatcga
     1921 tactagttgg agttccgcgt tacataactt acggtaaatg gcccgcctgg ctgaccgccc
     1981 aacgaccccc gcccattgac gtcaataatg acgtatgttc ccatagtaac gccaataggg
     2041 actttccatt gacgtcaatg ggtggagtat ttacggtaaa ctgcccactt ggcagtacat
     2101 caagtgtatc atatgccaag tacgccccct attgacgtca atgacggtaa atggcccgcc
     2161 tggcattatg cccagtacat gaccttatgg gactttccta cttggcagta catctacgta
     2221 ttagtcatcg ctattaccat ggtgatgcgg ttttggcagt acatcaatgg gcgtggatag
     2281 cggtttgact cacggggatt tccaagtctc caccccattg acgtcaatgg gagtttgttt
     2341 tggcaccaaa atcaacggga ctttccaaaa tgtcgtaaca actccgcccc attgacgcaa
     2401 atgggcggta ggcgtgtacg gtgggaggtc tatataagca gagctggttt agtgaaccgt
     2461 cagattctag accgctagcg ctaccggtcg ccaccatggt gagcaagggc gaggaggata
     2521 acatggccat catcaaggag ttcatgcgct tcaaggtgca catggagggc tccgtgaacg
     2581 gccacgagtt cgagatcgag ggcgagggcg agggccgccc ctacgagggc acccagaccg
     2641 ccaagctgaa ggtgaccaag ggtggccccc tgcccttcgc ctgggacatc ctgtcccctc
     2701 agttcatgta cggctccaag gcctacgtga agcaccccgc cgacatcccc gactacttga
     2761 agctgtcctt ccccgagggc ttcaagtggg agcgcgtgat gaacttcgag gacggcggcg
     2821 tggtgaccgt gacccaggac tcctccctgc aggacggcga gttcatctac aaggtgaagc
     2881 tgcgcggcac caacttcccc tccgacggcc ccgtaatgca gaagaagacc atgggctggg
     2941 aggcctcctc cgagcggatg taccccgagg acggcgccct gaagggcgag atcaagcaga
     3001 ggctgaagct gaaggacggc ggccactacg acgctgaggt caagaccacc tacaaggcca
     3061 agaagcccgt gcagctgccc ggcgcctaca acgtcaacat caagttggac atcacctccc
     3121 acaacgagga ctacaccatc gtggaacagt acgaacgcgc cgagggccgc cactccaccg
     3181 gcggcatgga cgagctgtac aagtccggac tcagatctcg agctcaagct tcggaattca
     3241 tgagctttga tccaaacctt ctccacaaca atggacataa tgggtaccct aatggtactt
     3301 cagcagcact gcgtgaaact ggggttattg aaaaactgtt aacctcttac ggatttattc
     3361 agtgttcaga acgtcaagct agacttttct tccactgttc acagtataat ggcaacctgc
     3421 aagacttaaa agtaggagat gatgttgaat ttgaagtatc atcggaccga cggactggga
     3481 aacccattgc tgttaaactg gtgaagataa aacaagaaat cctccctgaa gaacgaatga
     3541 atggacaaga agtgttttat ctgacttaca cccctgaaga tgtcgaaggg aacgttcagc
     3601 tggaaactgg agataaaata aactttgtaa ttgataacaa taaacatact ggtgctgtaa
     3661 gtgctcgcaa cattatgctg ttgaaaaaga aacaagcccg ctgtcaggga gtagtttgtg
     3721 ccatgaagga ggcatttggc tttattgaaa gaggtgatgt tgtaaaagag atattctttc
     3781 actatagtga atttaagggt gacttagaaa ccttacagcc tggcgatgat gtggaattca
     3841 caatcaagga cagaaatggt aaagaagttg caacagatgt cagactattg cctcaaggaa
     3901 cagtcatttt tgaagatatc agcattgaac attttgaagg aactgtaacc aaagttatcc
     3961 caaaagtacc cagtaaaaac cagaatgacc cattgccagg acgcatcaaa gttgactttg
     4021 tgatccctaa agaacttccc tttggagaca aagatacgaa atccaaggtg accctgctgg
     4081 aaggtgacca tgttaggttt aatatttcaa cagaccgacg tgacaaatta gagcgagcaa
     4141 ccaatataga agttctgtca aatacatttc agttcactaa tgaagcccga gaaatgggtg
     4201 tgattgctgc catgagagat ggttttggtt tcatcaagtg tgtggatcgt gatgttcgta
     4261 tgttcttcca cttcagtgaa attctggatg ggaaccagct ccatattgca gatgaagtag
     4321 agtttactgt ggttcctgat atgctctctg ctcaaagaaa tcatgctatt aggattaaaa
     4381 aacttcccaa gggcacggtt tcatttcatt cccattcaga tcaccgtttt ctgggcacgg
     4441 tagaaaaaga agccactttt tccaatccta aaaccactag cccaaataaa ggcaaagaga
     4501 aggaggctga ggatggcatt attgcttatg atgactgtgg ggtgaaactg actattgctt
     4561 ttcaagccaa ggatgtggaa ggatctactt ctcctcaaat aggagataag gttgaattta
     4621 gtattagtga caaacagagg cctggacagc aggttgcaac ttgtgtgcga cttttaggtc
     4681 gtaattctaa ctccaagagg ctcttgggtt atgtggcaac tctgaaggat aattttggat
     4741 ttattgaaac agccaatcat gataaggaaa tctttttcca ttacagtgag ttctctggtg
     4801 atgttgatag cctggaactg ggggacatgg tcgagtatag cttgtccaaa ggcaaaggca
     4861 acaaagtcag tgcagaaaaa gtgaacaaaa cacactcagt gaatggcatt actgaggaag
     4921 ctgatcccac catttactct ggcaaagtaa ttcgccccct gaggagtgtt gatccaacac
     4981 agactgagta ccaaggaatg attgagattg tggaggaggg cgatatgaaa ggtgaggtct
     5041 atccatttgg catcgttggg atggccaaca aaggggattg cctgcagaaa ggggagagcg
     5101 tcaagttcca attgtgtgtc ctgggccaaa atgcacaaac tatggcttac aacatcacac
     5161 ccctgcgcag ggcctaggga tccaatcaac ctctggatta caaaatttgt gaaagattga
     5221 ctggtattct taactatgtt gctcctttta cgctatgtgg atacgctgct ttaatgcctt
     5281 tgtatcatgc tattgcttcc cgtatggctt tcattttctc ctccttgtat aaatcctggt
     5341 tgctgtctct ttatgaggag ttgtggcccg ttgtcaggca acgtggcgtg gtgtgcactg
     5401 tgtttgctga cgcaaccccc actggttggg gcattgccac cacctgtcag ctcctttccg
     5461 ggactttcgc tttccccctc cctattgcca cggcggaact catcgccgcc tgccttgccc
     5521 gctgctggac aggggctcgg ctgttgggca ctgacaattc cgtggtgttg tcggggaagc
     5581 tgacgtcctt tccatggctg ctcgcctgtg ttgccacctg gattctgcgc gggacgtcct
     5641 tctgctacgt cccttcggcc ctcaatccag cggaccttcc ttcccgcggc ctgctgccgg
     5701 ctctgcggcc tcttccgcgt ctccgccttc gccctcagac gagtcggatc tccctttggc
     5761 cgcctccccg ccggtacctt taagaccaat gacttacaag gcagctgtag atcttagcca
     5821 ctttttaaaa gaaaaggggg gactggaagg gctaattcac tcccaacgaa aataagatct
     5881 gctttttgct tgtactgggt ctctctggtt agaccagatc tgagcctggg agctctctgg
     5941 ctaactaggg aacccactgc ttaagcctca ataaagcttg ccttgagtgc ttcaagtagt
     6001 gtgtgcccgt ctgttgtgtg actctggtaa ctagagatcc ctcagaccct tttagtcagt
     6061 gtggaaaatc tctagcagta gtagttcatg tcatcttatt attcagtatt tataacttgc
     6121 aaagaaatga atatcagaga gtgagaggaa cttgtttatt gcagcttata atggttacaa
     6181 ataaagcaat agcatcacaa atttcacaaa taaagcattt ttttcactgc attctagttg
     6241 tggtttgtcc aaactcatca atgtatctta tcatgtctgg ctctagctat cccgccccta
     6301 actccgccca gttccgccca ttctccgccc catggctgac taattttttt tatttatgca
     6361 gaggccgagg ccgcctcggc ctctgagcta ttccagaagt agtgaggagg cttttttgga
     6421 ggcctagact tttgcagaga cggcccaaat tcgtaatcat ggtcatagct gtttcctgtg
     6481 tgaaattgtt atccgctcac aattccacac aacatacgag ccggaagcat aaagtgtaaa
     6541 gcctggggtg cctaatgagt gagctaactc acattaattg cgttgcgctc actgcccgct
     6601 ttccagtcgg gaaacctgtc gtgccagctg cattaatgaa tcggccaacg cgcggggaga
     6661 ggcggtttgc gtattgggcg ctcttccgct tcctcgctca ctgactcgct gcgctcggtc
     6721 gttcggctgc ggcgagcggt atcagctcac tcaaaggcgg taatacggtt atccacagaa
     6781 tcaggggata acgcaggaaa gaacatgtga gcaaaaggcc agcaaaaggc caggaaccgt
     6841 aaaaaggccg cgttgctggc gtttttccat aggctccgcc cccctgacga gcatcacaaa
     6901 aatcgacgct caagtcagag gtggcgaaac ccgacaggac tataaagata ccaggcgttt
     6961 ccccctggaa gctccctcgt gcgctctcct gttccgaccc tgccgcttac cggatacctg
     7021 tccgcctttc tcccttcggg aagcgtggcg ctttctcata gctcacgctg taggtatctc
     7081 agttcggtgt aggtcgttcg ctccaagctg ggctgtgtgc acgaaccccc cgttcagccc
     7141 gaccgctgcg ccttatccgg taactatcgt cttgagtcca acccggtaag acacgactta
     7201 tcgccactgg cagcagccac tggtaacagg attagcagag cgaggtatgt aggcggtgct
     7261 acagagttct tgaagtggtg gcctaactac ggctacacta gaaggacagt atttggtatc
     7321 tgcgctctgc tgaagccagt taccttcgga aaaagagttg gtagctcttg atccggcaaa
     7381 caaaccaccg ctggtagcgg tggttttttt gtttgcaagc agcagattac gcgcagaaaa
     7441 aaaggatctc aagaagatcc tttgatcttt tctacggggt ctgacgctca gtggaacgaa
     7501 aactcacgtt aagggatttt ggtcatgaga ttatcaaaaa ggatcttcac ctagatcctt
     7561 ttaaattaaa aatgaagttt taaatcaatc taaagtatat atgagtaaac ttggtctgac
     7621 agttaccaat gcttaatcag tgaggcacct atctcagcga tctgtctatt tcgttcatcc
     7681 atagttgcct gactccccgt cgtgtagata actacgatac gggagggctt accatctggc
     7741 cccagtgctg caatgatacc gcgagaccca cgctcaccgg ctccagattt atcagcaata
     7801 aaccagccag ccggaagggc cgagcgcaga agtggtcctg caactttatc cgcctccatc
     7861 cagtctatta attgttgccg ggaagctaga gtaagtagtt cgccagttaa tagtttgcgc
     7921 aacgttgttg ccattgctac aggcatcgtg gtgtcacgct cgtcgtttgg tatggcttca
     7981 ttcagctccg gttcccaacg atcaaggcga gttacatgat cccccatgtt gtgcaaaaaa
     8041 gcggttagct ccttcggtcc tccgatcgtt gtcagaagta agttggccgc agtgttatca
     8101 ctcatggtta tggcagcact gcataattct cttactgtca tgccatccgt aagatgcttt
     8161 tctgtgactg gtgagtactc aaccaagtca ttctgagaat agtgtatgcg gcgaccgagt
     8221 tgctcttgcc cggcgtcaat acgggataat accgcgccac atagcagaac tttaaaagtg
     8281 ctcatcattg gaaaacgttc ttcggggcga aaactctcaa ggatcttacc gctgttgaga
     8341 tccagttcga tgtaacccac tcgtgcaccc aactgatctt cagcatcttt tactttcacc
     8401 agcgtttctg ggtgagcaaa aacaggaagg caaaatgccg caaaaaaggg aataagggcg
     8461 acacggaaat gttgaatact catactcttc ctttttcaat attattgaag catttatcag
     8521 ggttattgtc tcatgagcgg atacatattt gaatgtattt agaaaaataa acaaataggg
     8581 gttccgcgca catttccccg aaaagtgcca cctgacgtct aagaaaccat tattatcatg
     8641 acattaacct ataaaaatag gcgtatcacg aggccctttc gtctcgcgcg tttcggtgat
     8701 gacggtgaaa acctctgaca catgcagctc ccggagacgg tcacagcttg tctgtaagcg
     8761 gatgccggga gcagacaagc ccgtcagggc gcgtcagcgg gtgttggcgg gtgtcggggc
     8821 tggcttaact atgcggcatc agagcagatt gtactgagag tgcaccatat gcggtgtgaa
     8881 ataccgcaca gatgcgtaag gagaaaatac cgcatcaggc gccattcgcc attcaggctg
     8941 cgcaactgtt gggaagggcg atcggtgcgg gcctcttcgc tattacgcca gctggcgaaa
     9001 gggggatgtg ctgcaaggcg attaagttgg gtaacgccag ggttttccca gtcacgacgt
     9061 tgtaaaacga cggccagtgc caagctg
//
